PVC Coated Fiberglass Measuring Tapes

MILLION OPEN REEL & MILLION CUSTOM

"MILLION TAPES" ARE MANUFACTURED TO WITHSTAND RUGGED USE AND RESIST TEAR, YEAR AFTER YEAR, EVEN UNDER ROUGH HANDLING AND EXTREME WHETHER CONDITIONS AND TEMPERATURES.

  • SUPERIOR DURABILITY
  • HIGH ACCURACY
  • HIGH VISIBILITY
  • NON-CONDUCTIVE
  • GOOD DESIGNED REEL/CASE
  • WEATHER RESISTANT
  • EASY TO CLEAN

FEATURES:

  • STRENGTH is assured through an inner core of extreme tough Glass Fiber and an overlay of protective Poly Vinyl Chloride. The tape breaking point is more than 2,000N.
  • ACCURACY is almost comparable with that of conventional steel measuring tapes. The tolerance on MILLION TAPE: within +-5mm in 30 meters long.
  • LEGIBILITY is excellent as all marking are printed with ultraviolet-fixation permeating ink. Thereby, the markings are hardly come off for years of use.
  • NON-CONDUCTIVE tape blade is made of two non-conductive materials which render the tape absolutely safe from hazards. The tape has a proven dielectric strength of 200,000 V/m.
  • DESIGN, through long experiences in our own field, makes the MILLION TAPES series a wise choice for you.
MILLION OPEN REEL

MILLION OPEN REEL

PVC coated fiberglass tape in ABS Open Reel.

#width:12.5mm #Thick:0.45mm #Tension:20N
Cat. Nos. Lengths
OTR30 30m
OTR50 50m
OTR100 100m

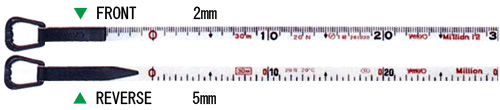

DUAL MARKINGS

MARKING SPECIFICATIONS

  • Type of graduation : 2/EC5
  • Descriptions : Metric/Metric on both sides
  • Graduations :
    MILLION TAPE

MILLION COSTOM

MILLION CUSTOM

PVC coated fiberglass tape in ABS Case.

#width:12.5mm #Thick:0.45mm #Tension:20N
Cat. Nos. Lengths
MCT10 10m
MCT20 20m

The following EEC standard tape is also available.

  • Type of graduation : EC2
  • Metric only on one side(2mm)
  • Graduations :
    EEC standard TAPE
